ENTITY - Unbounded Aggregate

Description

Abstract Concept

An Unbounded Aggregate is an Aggregate Entity Block that does not have boundaries and, thereby, that cannot participate to Ordering Connections.

Examples:

- Operating Eco-System;

- Directive.

Functional Domain: Compositionality

The purpose of the Compositionality family of concepts is to provide syntactic mechanisms that support the construction of composite Building Blocks.

Super Types

Aggregate Entity Block

Dictionary

SysFEAT Upper Ontology

Lexical Scope

Block Lexical Scope

Container

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Entity Member	[*..0]	Aggregate Entity Block	Aggregate Entity Block	Abstract Relationship An Entity Member is an Aggregate Member of an Aggregate Entity Block that aggregates another Aggregate Entity Block.
Unbounded Member	[*..0]	Unbounded Aggregate	Aggregate Entity Block	Abstract Relationship An Unbounded Member is an Entity Member of an Aggregate Entity Block that aggregates an Unbounded Aggregate.Because Entity Members do not have borders, Unbounded Members cannot be related by Ordering Connections (see Bounded Aggregate).
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.
Existential Dependency	[1..1]	Entity	Entity	Abstract Relationship An Existential Dependency relationship is a Relationship where the source Entitys existence depends on the existence of the target Entity.The cardinality of the set of targetted Entity is [1..1].

LOGICAL FORMULATION

LOGIC-AGDA RDF

File: 8cfa942f68527849.agda

File: 8cfa942f68527849.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

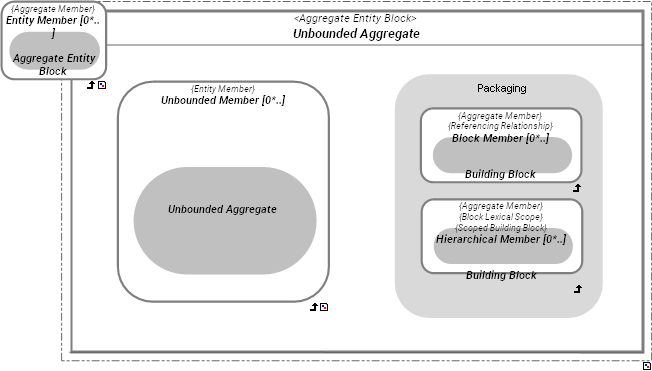

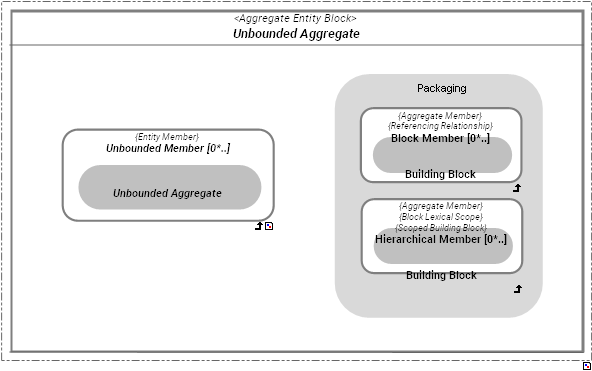

INTERNAL STRUCTURE

../images/8cfa942f68527849_8cfaf6f96852afd9_i.png
