CLASS OF CLASS OF CONNECTION - Outcome Event

Description

Abstract Concept
An Outcome Event is a Behavioral Event that signals the Output of an Asset Type or state of Asset Type ( Outcome) by a producer Behavior, ready to be used as an Input by a consumer Behavior.

Conceptualization Levels of Outcome Event: an Outcome Event is either a Resource Outcome Event or a Conceptual Outcome Event

Functional Domain: System Operating Framework - SOF

The System Operating Framework - SOF models how an active system (Agent) operates/functions (Behavior) in its Operating Eco-System to produce Outcome Events that benefit (value) to other Agents or affect (have an effect upon) these Agents.

External references

OMG - BACM - Outcome

OMG - UML - Signal

Russell Ackoff - Choice & Communication - Outcomes

Russell Ackoff - Choice & Communication - Utility

WordNet - Outcome

Super Types

Behavioral Event

Dictionary

SysFEAT System Operating Framework

Lexical Scope

Block Lexical Scope

Container

Architecture Container

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Outcome	[*..0]	Class of Bounded Individual	Outcome Event	The changed state of a Class of Bounded Individual that is signaled by an Outcome Event.An Outcome is the result of a Behavior of a producer Agent and is signaled as an Outcome Event to a consumer Agent that reacts to this change event.Examples:- An improved process (Behavior) that is the result of a refactoring activity done by a consulting organization (producer Agent) for the benefit of a business unit (user Agent).- A new application (Sofware System) that is the result of development and sales activities of a software company (producer Agent) for the benefit of an end user (user Agent).- A produced car (Hardware System) that is the result of development, production and sales activities of a car manufacturing company (producer Agent) for the benefit of an end user (Retail Customers, Fleet Customers, ...).
Specialized Functional Asset	[*..0]	Functional Asset	Functional Asset
Realized Functional Asset	[*..0]	Functional Asset	Functional Asset	A kind of specialization between an implementing Functional Asset and its abstract Realized Functional Asset.Realization relationships are the foundation to establish the mapping between Functional Assets that belong to different Conceptualization Levels.
Policy Conformance	[*..0]	Policy	Functional Asset	A Policy Conformance is the conformity requirement that applies a Functional Asset.
Risk	[*..0]	Risk Type	Functional Asset	A Risk refers to the potential for loss resulting from inadequate structure or behavior of a Functional Asset.
Connection End	[*..0]	Bounded Aggregate	Ordering Connection
Connection Member	[*..0]	Ordering Connection	Ordering Connection
Composition Type	[*..0]	First Order Class	First Order Class	Composition Type is the powertype of Composition (Whole/Part).
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.
Start Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
End Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Temporal Sequencing Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Aggregate Composition Type	[*..0]	Class of Bounded Individual	Class of Bounded Individual	An Aggregate Composition Type is a reified flavor of Composition Type whereby the referenced Class of Individual is aggregated in its parent (whole) Class of Bounded Individual.Example:1) A Process Step is the reification of the composition of a child process in a parent process.2)
Border	[*..0]	Ordering Connection	Bounded Aggregate

TEXTUAL SYNTAX

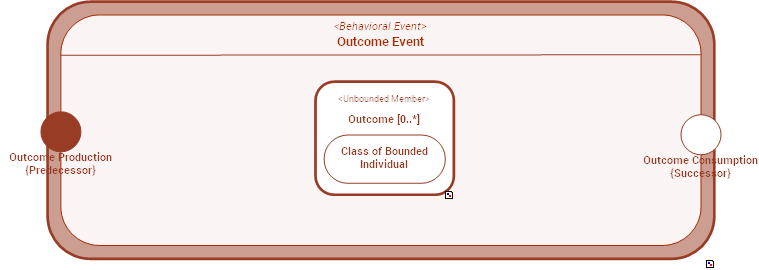

CONNECTION DIAGRAM
