CLASS OF CLASS OF INDIVIDUAL - Operating Asset

Description

Abstract Concept

An Operating Asset is a Functional Asset that describes the way Outcome Events are produced and consumed: how (Behaviors) and by whom (Agents).

Operating Assets fulfill Capability(ies) ( Fulfilled Capability).

As any Functional Architecture Asset, Operating Assets are subject to Policy Conformances. In addition, they define Rule Enforcements to indicate how Policy Conformances are met.

Conceptualization Levels of Operating Asset: an Operating Asset is either a Conceptual Operating Asset or a Resource Operating Asset
Systemic Levels of Operating Asset: an Operating Asset is either a Macro Operating Asset, a Mezzo Operating Asset or a Micro Operating Asset
Structural Partition of Operating Asset: an Operating Asset is either an Agent or a Behavior

Functional Domain: System Operating Framework - SOF

The System Operating Framework - SOF models how an active system (Agent) operates/functions (Behavior) in its Operating Eco-System to produce Outcome Events that benefit (value) to other Agents or affect (have an effect upon) these Agents.

External references

OMG - KerML - Class

Super Types

Asset Block

Class of Bounded Individual

Functional Asset (from partition: Structural Partition of Functional Asset)

Dictionary

SysFEAT System Operating Framework

Lexical Scope

Architecture Container

Framework Mapping

UAF - Motivation : Operating Asset

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

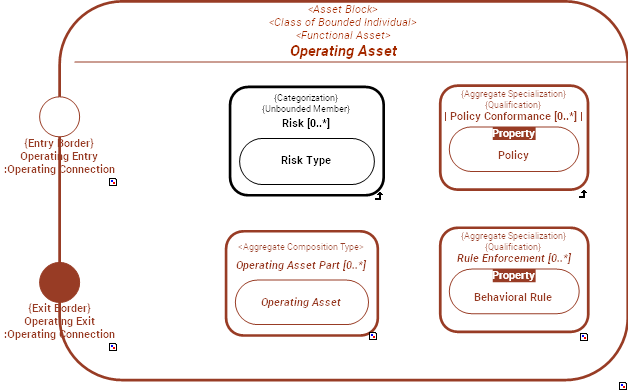

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Specialized Operating Asset	[*..0]	Operating Asset	Operating Asset
Realized Operating Asset	[*..0]	Operating Asset	Operating Asset
Fulfilled Capability	[*..0]	Capability	Operating Asset	Capability(ies) fulfilled by an Agent and its Behaviors.
Operating Entry	[*..0]	Operating Connection	Operating Asset
Operating Exit	[*..0]	Operating Connection	Operating Asset
Rule Enforcement	[*..0]	Behavioral Rule	Operating Asset	A Rule Enforcementt is the application of a Behavioral Rule in an Operating Asset.In a Action Process, a Rule Enforcement is a guide to Process Steps.In an Agent, a Rule Enforcement is a guide to its structure: Agent Parts, Information Stores, Performed Processes.
Operating Asset Part	[*..0]	Operating Asset	Operating Asset
Categorization	[*..0]	Category	Class of Bounded Individual	Categorization is a Classification of a Class of Bounded Individual by a Family of Class called Category.
Start Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
End Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Temporal Sequencing Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.
Enumerated Definition	[1..1]	Agent	Operating Asset
Enumerated Definition	[1..1]	Behavior	Operating Asset

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: a371a43b5b865817.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.
